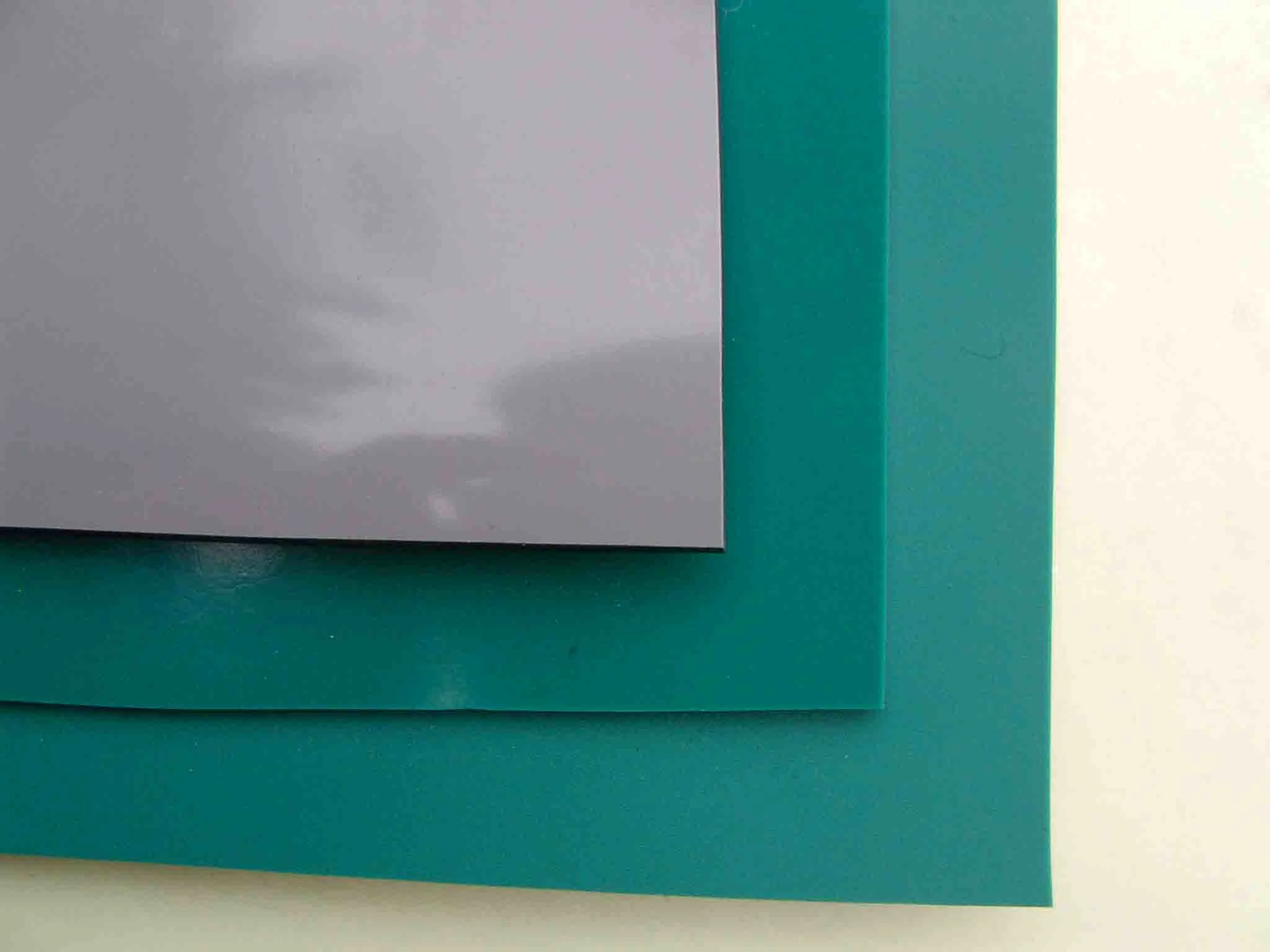

ESD Rubber Sheet, Antistatic Rubber Sheet with Green, Blue, Grey, Black Color (3A5010)
Description: the antistatic rubber sheet, ESD rubber sheet are made by drum vulcanizer(ROTOCURE) with high quality nitrile-butadiene rubber(NBR), special prescription and produce technology with best performance of antistatic, ESD Rubber Sheet also named antistatic rubber sheet, it is a logogram of Electro-Static Discharge(ESD) rubber sheet under moderate hardness and high tensile strength, no smell and good abrasion resistance, oil resistant and elasticity, working under the middling pressure status at the temperature of -35°C - +100°C in air. Apply for the industrial of electronic, textile, printing and dyeing and other place with same or higher request.
Specifications:
material: NBR Rubber
color: green/black, blue/black, grey/black, black/black
surface: shiny/smooth or sand/smooth
top: 107-109ohm
bottom: 103-105ohm
attenuation time of electrostatic pressure: 0.1S
tensile strength: 6-8Mpa
hardness: 70+/-5shore A
elongation: 300%
density: 1.4g/cm3
working temperature: -35°C - +100°C
thickness: 2-3mm
width: 0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2mm
length: 10-20m
OEM & customized size are agreed

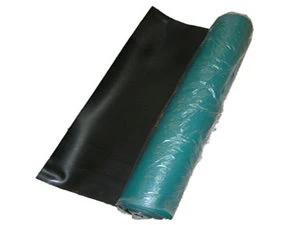

packing in rolls, cartons and pallets
***when you enquiry, pls confirm the color, size and quantity***
