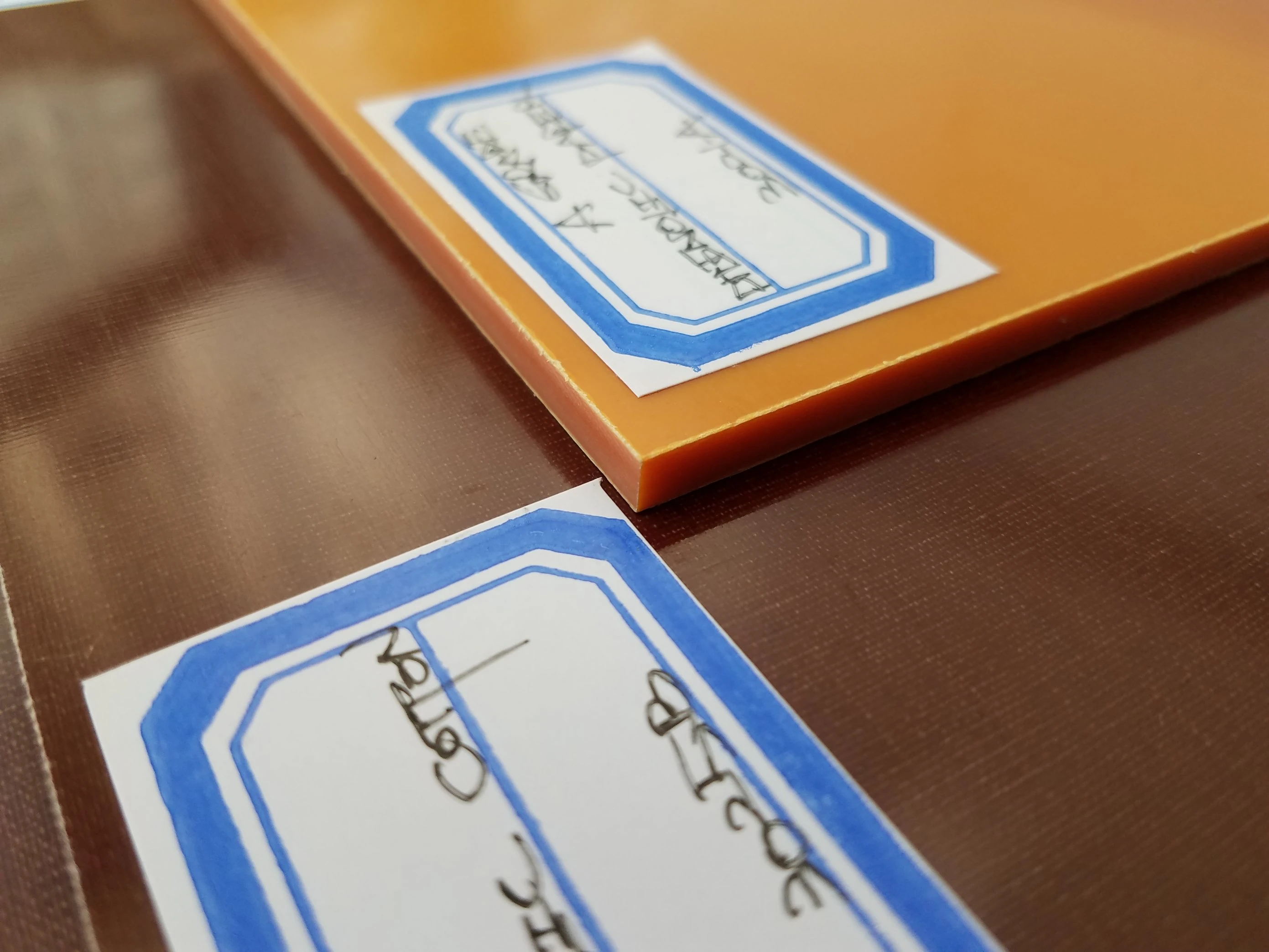

Phenolic Cotton Sheet, Phenolic Paper Sheet, Bakelite Cotton Sheet, Bakelite Paper Sheet (3A6011)



Description: the phenolic sheet, bakelite sheet are made by applying heat and pressure to layers of paper or glass cloth impregnated with phenolic resin with good electrical properties, good mechanical properties, no water absorption, high heat resistance, good surface hardness, abrasion resistance, good insulation. These layers of laminations are usually of cellulose paper, cotton fabrics, synthetic yarn fabrics, glass fabrics or unwoven fabrics. When heat and pressure are applied to the layers, a chemical reaction (polymerization) transforms the layers into a high-pressure thermosetting industrial laminated plastic. Apply to PCB fixture, ICT fixture, pads of drilling machine, gear, motor, generator, transformer, fixture inverter, switch, electric insulation part, generator, transformer, fixture, inverter, motor and electric insulation component.



Specification:

materuial: phenolic resin + cotton fabric or paper

color: brown, beige, yellow, red

surface: smooth

tensile strength: 78Mpa

flexural strength: 90-110Mpa

compression strength: 138Mpa

breakdown voltage: 10KV

density: 1.25-1.40g/cm3

heat-resistant: B class 130

standard size: 1-80mm x 1m x 2m

OEM & customized size are agreed

packing in cartons, pallets or crates

***When you enquiry, pls confirm color, size and quantity***



Properties

Grade

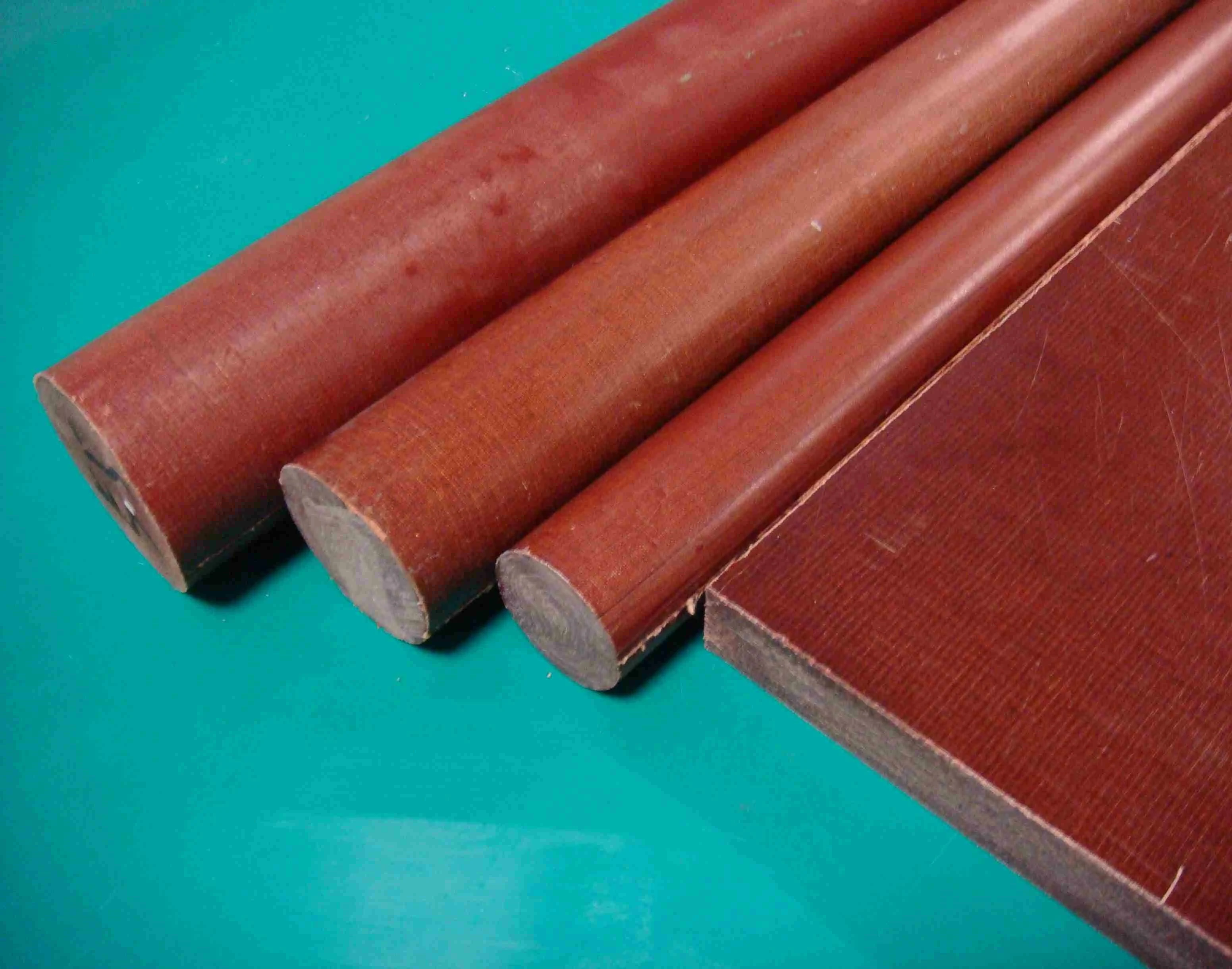

insulation bakelite rod

Properties

Units

3723

3724

3725

3726

Density



Dia(mm)

g/cm3

1.25-1.40

1.25-1.40

1.25-1.40

1.25-1.40

Water absorption rate (D-24/23)

6

%

1.7

1

1.2

1

13

1.3

(Φ13mm)

(Φ13mm)

(Φ13mm)

25

1



25~51

1.2



Flexural strength



MPa

90

95

110

95

Tensile strengh



MPa

78

\

\

\

Compression strength (Axial)



MPa

138

138

138

138

Insulation resistance parallel to laminations



\

\

\

A: Under normal condition



W

1.0×108



D-24/23: Immersion in water



W

\

\

\

\

Breakdown voltage parallel to laminations (in transformer oil)



KV

10

10

10

10



(20±5°C)

(20±5°C)

(20±5°C)

(20±5°C)

Flammability



-

-

-

-

-

Color



-

Natural

Natural

Natural

Natural

Reference standard



-

Enterprise Standard
