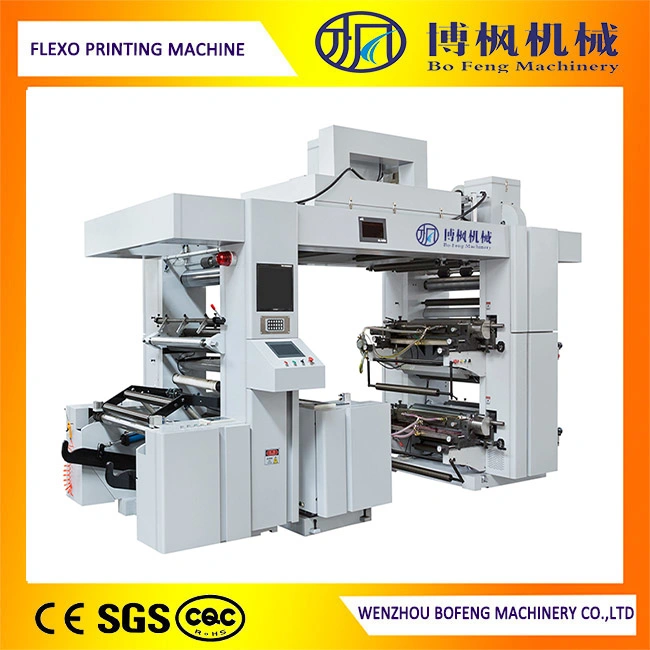

4 Color High Speed Roll to Roll HDPE/PE/ Plastic Bag Flexo/Flexographic Printing Machine
Feature:
- Adopts the synchronous belt drive instead of Gear drive;
- Machine running more quite, higher printing precision, good quality;
- Machine more stable;
- High Mechanical speed: 120m/min ( by enclosed chamber dr blade)
- High printing speed: 30-100m/min
- Single unwind & Single rewind
Main Technical Parameter
| Model | BFYT-Bseries 2/4/6/8 color | |||
| 600 | 800 | 1000 | 1200 | |
| Max. Material width | 650mm | 850mm | 1050mm | 1250mm |
| Max. Printing width | 560mm | 760mm | 960mm | 1160mm |
| Printing color | 2+0,1+1 4+0,2+2,1+3 6+0,3+3,4+2,1+5 8+0,4+4,2+6,5+3,1+7 | |||
Suitable Printing Material | Paper: 20~100g,plastic film 10-30micron, non woven fabric, Bopp.... | |||
| Printing length | 300-1000mm | |||
| Printing plate lifting system | Automatic Hydraulic | |||
| Mechanical speed | 130m/min | |||
| Printing speed | 10-120m/min | |||
| Anilox cylinder | Ceramic anilox roller(100-1000LPI), Chamber doctor blade | |||
| Rewinder/Unwinder DIA | ø 1000mm/ ø 1200mm | |||
| Master power | 25KW | 35KW | 45KW | 55KW |
Optional part:
1. Video inspection USD4000/set
2. corona treatment USD800/set
3.Crane USD2000/set
