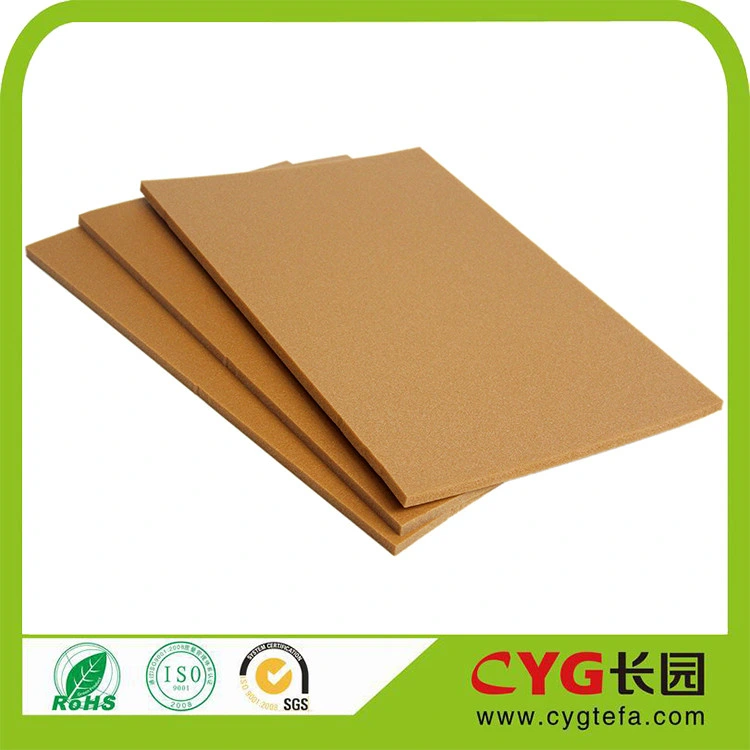

Eco-friendly closed cell Crosslinked polyethylene XPE foam
Two major types of crosslinked PE foam are:
1. Irriadiated Crosslinked polyethylene foam(IXPE FOAM) is very fine celled microcellular foam. Iriadiated crosslinked foam is used for medical applications, heart forming, and high end protective packaging and consumer products. This foam can actually be printed on very clearly.
2. Chemically crosslinked foam(XPE FOAM) also has good physical properties, but has a larger more random cell structure. Chemically crosslinked foam can also be used for packaging, heat forming and a large variety of applications.
Feature:
1. Light weight, good elasticity
2. Weatherproof and waterproof
3. Flame retardant
4. Sound absorption
5. Heat insulation
6. Thermal insulation
7. Elastic and flexibility
8. Shock absorption
Specifications
Payment terms: TT/LC
MOQ: 1) 3mm-4mm thickness, MOQ3000sqm
2)5mm-7mm thickness, MOQ2000 sqm
3)thickness more than 8mm, MOQ 1000 sqm
Delivery date: 15-20 workingdays from the date of order
Material: PE/XPE/IXPE foam
Advantages:
1. Heat Insulation:
Single-foaming structure can reduce the loss of heat between air convections, suitable for making heat preservation pipes and boards. Good anti-dew capability, suitable for humid environments like refrigerators, air-conditioners and ice houses, etc.
2. Cushion Capability:
Semi-hard quality foams have good rebound capabilities after strong impact, suitable for the packing of instruments, semi-conductors and electronics, etc.
3. Sound Absorption:
Good sound and noise absorption capability, suitable for sound absorption and insulation parts of automobiles, electro-motors and other equipment and environments with loud noises.
4. Shaping Capability:
Good heat endurance and ductility capability with even density, suitable for making deep interior parts like shaping in vacuum and hot environments, like the air conditioning vaporizing tank of automobiles, hot-shaped peak canopy of vehicles and shoes, etc.
5. Good chemical, oil, acid and alkali durability capabilities.
It is safe and odorless, easy for machining and casting, and can be mixed with many other materials. It has a wide developing area as a new environmentally-safe material.
Mainly Application:
Building insulation, auomotive trim, packaging, sports goods, etc
Company info
CYG TEFA Co., Ltd, a subsidary of Changyuan Group(stock code: 600525),
Established in 2002, CYG TEFA Co., Ltd has 12 years of production experience. We're the biggest and the most professional irradiation crosslinked polyethylene conductive foam manufacturer in China and has the most complete crosslinked polyethylene foam products. Our main products are Crosslinked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; Etc. Now, we have 2 factories and 8 production lines...
Company website: cygtefa.en.made-in-china.com
Two major types of crosslinked PE foam are:
1. Irriadiated Crosslinked polyethylene foam(IXPE FOAM) is very fine celled microcellular foam. Iriadiated crosslinked foam is used for medical applications, heart forming, and high end protective packaging and consumer products. This foam can actually be printed on very clearly.
2. Chemically crosslinked foam(XPE FOAM) also has good physical properties, but has a larger more random cell structure. Chemically crosslinked foam can also be used for packaging, heat forming and a large variety of applications.
Feature:
1. Light weight, good elasticity
2. Weatherproof and waterproof
3. Flame retardant
4. Sound absorption
5. Heat insulation
6. Thermal insulation
7. Elastic and flexibility
8. Shock absorption
Specifications
Payment terms: TT/LC
MOQ: 1) 3mm-4mm thickness, MOQ3000sqm
2)5mm-7mm thickness, MOQ2000 sqm
3)thickness more than 8mm, MOQ 1000 sqm
Delivery date: 15-20 workingdays from the date of order
Material: PE/XPE/IXPE foam
Advantages:
1. Heat Insulation:
Single-foaming structure can reduce the loss of heat between air convections, suitable for making heat preservation pipes and boards. Good anti-dew capability, suitable for humid environments like refrigerators, air-conditioners and ice houses, etc.
2. Cushion Capability:
Semi-hard quality foams have good rebound capabilities after strong impact, suitable for the packing of instruments, semi-conductors and electronics, etc.
3. Sound Absorption:
Good sound and noise absorption capability, suitable for sound absorption and insulation parts of automobiles, electro-motors and other equipment and environments with loud noises.
4. Shaping Capability:
Good heat endurance and ductility capability with even density, suitable for making deep interior parts like shaping in vacuum and hot environments, like the air conditioning vaporizing tank of automobiles, hot-shaped peak canopy of vehicles and shoes, etc.
5. Good chemical, oil, acid and alkali durability capabilities.
It is safe and odorless, easy for machining and casting, and can be mixed with many other materials. It has a wide developing area as a new environmentally-safe material.
Mainly Application:
Building insulation, auomotive trim, packaging, sports goods, etc
Company info
CYG TEFA Co., Ltd, a subsidary of Changyuan Group(stock code: 600525),
Established in 2002, CYG TEFA Co., Ltd has 12 years of production experience. We're the biggest and the most professional irradiation crosslinked polyethylene conductive foam manufacturer in China and has the most complete crosslinked polyethylene foam products. Our main products are Crosslinked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; Etc. Now, we have 2 factories and 8 production lines...
Company website: cygtefa.en.made-in-china.com
Density | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | |
Hardness | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 2-30 | 18-25 | |
Water absorption (23°C 24h)g/ cm³ | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | |
Thermal conductivity | ≤0.092 | ≤0.082 | ≤0.07 | ≤0.062 | ≤0.053 | ≤0.047 | ≤0.041 | |
Tensile strength(mpa) | L | ≥1.35 | ≥1.12 | ≥0.88 | ≥0.68 | ≥0.39 | ≥0.33 | ≥0.25 |
M | ≥1.08 | ≥0.89 | ≥0.71 | ≥0.56 | ≥0.33 | ≥0.25 | ≥0.20 | |
Tesibility | L | ≥260 | ≥230 | ≥210 | ≥190 | ≥170 | ≥160 | ≥140 |
M | ≥220 | ≥200 | ≥185 | ≥170 | ≥150 | ≥135 | ≥130 | |
Tearing strength | L | ≥5.90 | ≥4.80 | ≥3.60 | ≥2.80 | ≥1.80 | ≥1.60 | ≥1.35 |
M | ≥7.10 | ≥5.40 | ≥4.00 | ≥3.30 | ≥2.30 | ≥2.00 | ≥1.70 | |
