Ultra high molecular weight polyethylene is known as UHMWPE for short or PE1000 due to its molecular weight. UHMWPE has outstanding abrasion resistance, non sticking, excellent mechanical properties and superior impact strength, even at temperatures below -200°C. These excellent properties means UHMWPE is used for food and beverage machinery, bulk material handling, chemical and mining processing equipment and much more. UHMWPE can be machined into vitually anything from gears, bearings to large machinery parts.
Property: | Test Method (Standard) | Ticona GUI4152 | Ticona GUI4150,4120 | Unit |
Molecular weight |
| 1.5million-4million | 1.5million-8million |
|
Density | ISO 1183-1:2012/DIN53479 | 0.92-0.98 | 0.93-0.98 | g/cm³ |
Compression strength | ISO 604:2002 | ≥30 | ≥32 | Mpa |
Tensile strength | ISO527-2:2012 | ≥20 | ≥22 | Mpa |
Elongation at break | ISO527-2:2012 | ≥280 | ≥300 | % |
Dynamic Friction coefficient | ASTM D 1894/GB10006-88 | ≤0.20 | ≤0.18 |
|
Notched impact strength (Charpy) | ISO179-1:2010/GB/T 1043.1-2008 | ≥100 | ≥100 | kJ/m2 |
Abrasion wear index | ES-X60210-2008 | ≤30 | ≤30 | mg |
Vicat softing point | ISO306:2004 | ≥80 | ≥80 | °C |
Hardness shore-D | ISO 868:2003 | 60-65 | 61-66 | D |

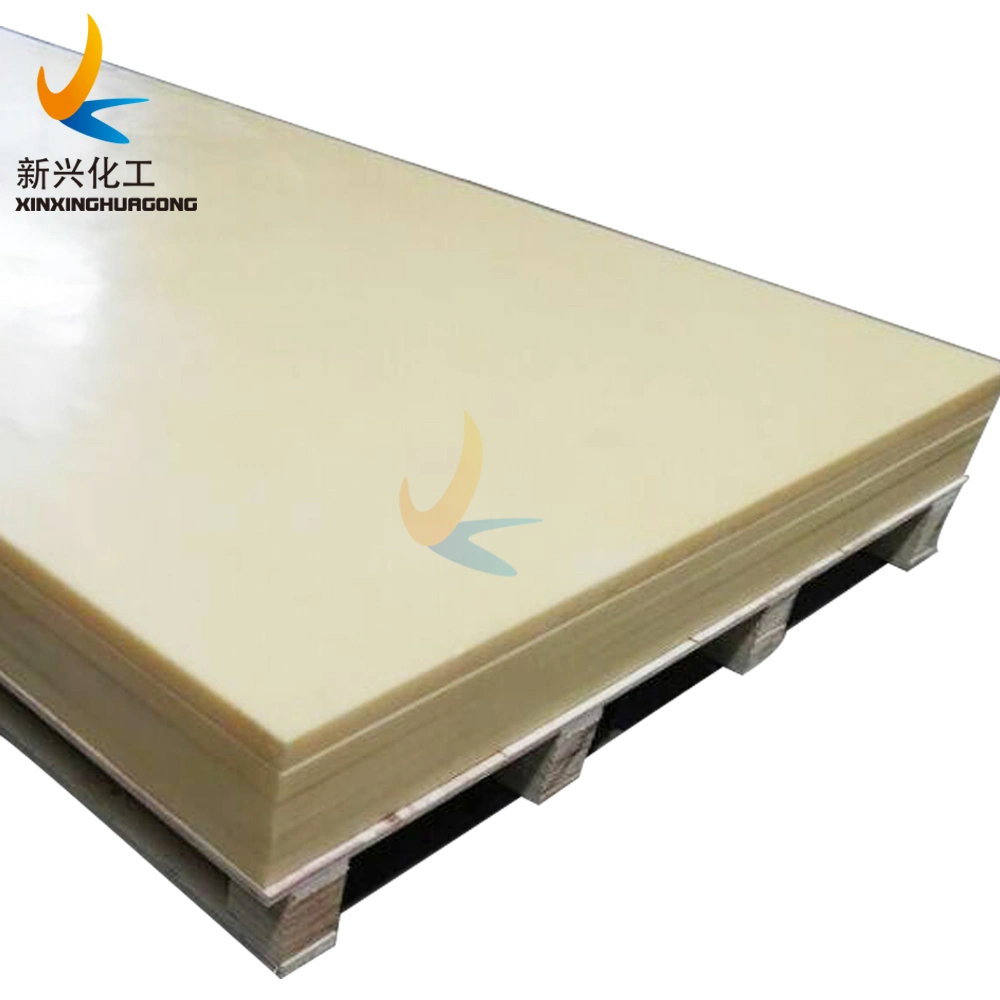

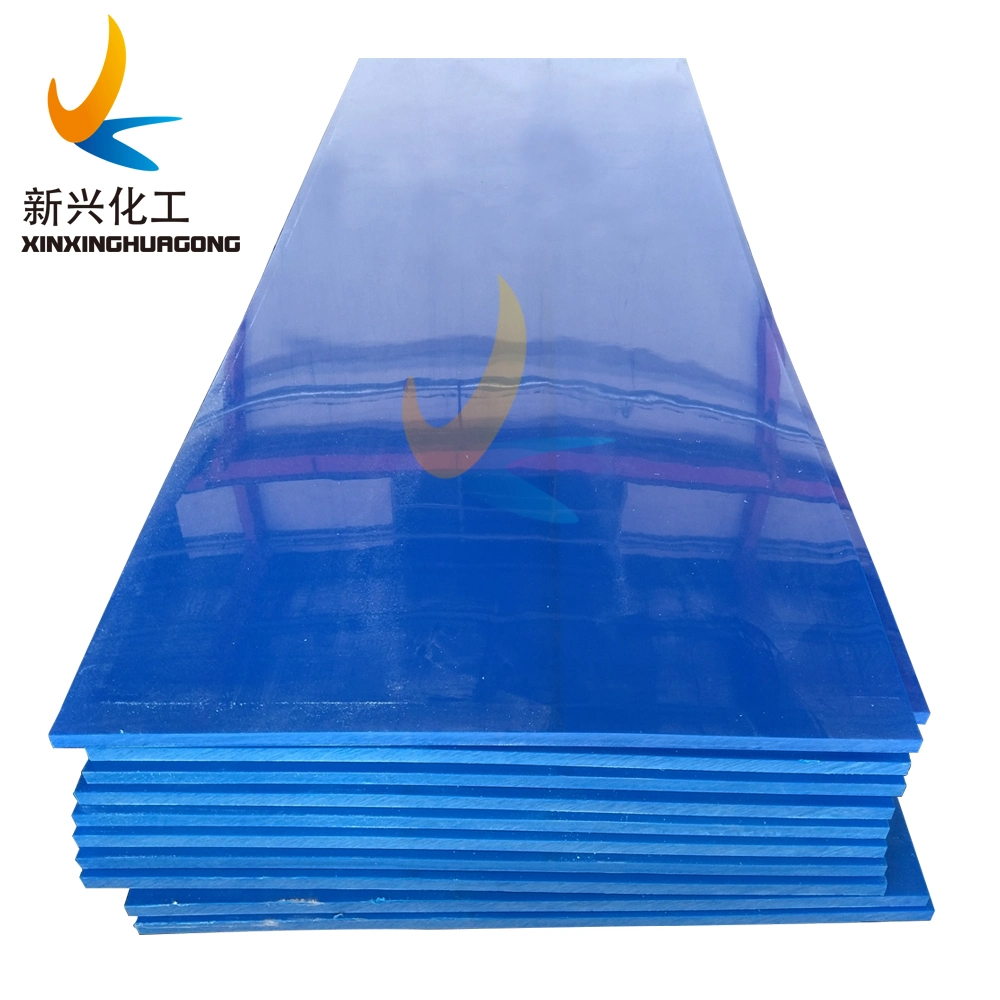

Our UHMW-PE sheet Characters:
1.very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.
5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.
UHMWPE Advantages & Key Features:
--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
--Anti-Weather & Anti-Aging
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise- absorption, Vibration-absorption
--Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800C
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; Relatively low in water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion
--Light weight and easier to handle and fix
--Cost efficient; Resulting in low energy consumption
--Does not rot, split or crack; 100% recyclable
--Great liner material for industrial material handling applications
--Easy Reprocessed
| SIZE |
| 2000x1000x(6-300)mm | 3050x3050x(6-300)mm |
| 5040x1330x(6-300)mm | 4730x1230x(6-300)mm |
| 3050x1220x(6-300)mm | 6050x1820x(6-300)mm |
| 3030x1550x(6-300)mm | 4520x2000x(6-300)mm |
Any size within the standard size is available.
Color:
Black, Blue, Yellow, Green, White, Red, Orange, any other color will be available.
Ready for delivery
